787.

PLAN.

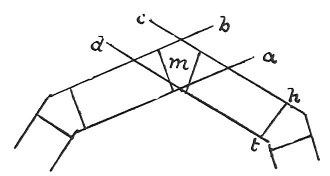

Here it is shown how the arches made in the side of the octagon thrust the piers

p. 94

of the angles outwards, as is shown by the line h c and by the line t d which thrust out the pier m; that is they tend to force it away from the centre of such an octagon.
