107.

OF EQUAL OBJECTS THE MOST REMOTE LOOK THE SMALLEST.

On natural perspective (107--109).The practice of perspective may be divided into ... parts  50 , of which the first treats of objects seen by the eye at any distance; and it shows all these objects just as the eye sees them diminished, without obliging a man to stand in one place rather than another so long as the plane does not produce a second foreshortening.

But the second practice is a combination of perspective derived partly from art and partly from nature and the work done by its rules is in

p. 63

every portion of it, influenced by natural perspective and artificial perspective. By natural perspective I mean that the plane on which this perspective is represented is a flat surface, and this plane, although it is parallel both in length and height, is forced to diminish in its remoter parts more than in its nearer ones. And this is proved by the first of what has been said above, and its diminution is natural. But artificial perspective, that is that which is devised by art, does the contrary; for objects equal in size increase on the plane where it is foreshortened in proportion as the eye is more natural and nearer to the plane, and as the part of the plane on which it is figured is farther from the eye.

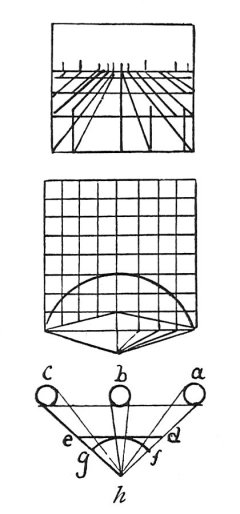

And let this plane be d e on which are seen 3 equal circles which are beyond this plane d e, that is the circles a b c. Now you see that the eye h sees on the vertical plane the sections of the images, largest of those that are farthest and smallest of the nearest.


Footnotes

62:50 4: in ... parte. The space for the number is left blank in the original.
