757.

This building is inhabited below and above; the way up is by the campaniles, and in going up one has to use the platform, where the drums of the four domes are, and this platform has a parapet in front, and none of these domes communicate with the church, but they are quite separate.

Pl. XCVI No. 1 (MS. C. A. 16b; 65a). Perspective view of a church seen from behind; this recalls the Duomo at Florence, but with two campaniles 379 .

Pl. XCVII No. 3 (MS. B. 52a). The central part is a development of S. Lorenzo at Milan, such as was executed at the Duomo of Pavia. There is sufficient analogy between the building actually executed and this sketch to suggest a direct connection between them. Leonardo accompanied Francesco di Giorgio 380 when the latter was consulted on June 21st, 1490 as to this church; the fact that the only word accompanying the plan is: "sagrestia", seems to confirm our supposition, for the sacristies were added only in 1492, i. e. four years after the beginning of the Cathedral, which at that time was most likely still sufficiently unfinished to be capable of receiving the form of the present sketch.

Pl. XCVII No. 2 shows the exterior of this design. Below is the note: edifitio al proposito del fodameto figurato di socto (edifice proper for the ground plan figured below).

Here we may also mention the plan of a Latin cross drawn in MS. C. A. fol. 266 (see p. 50).

Pl. XCIV No. 1 (MS. L. 15b). External side view of Brunellesco's Florentine basilica San Lorenzo, seen from the North.

Pl. XCIV No. 4 (V. A. V, 1). Principal front of a nave, most likely of a church on the plan of a Latin cross. We notice here not only the

p. 54

principal features which were employed afterwards in Alberti's front of S. Maria Novella, but even details of a more advanced style, such as we are accustomed to meet with only after the year 1520.

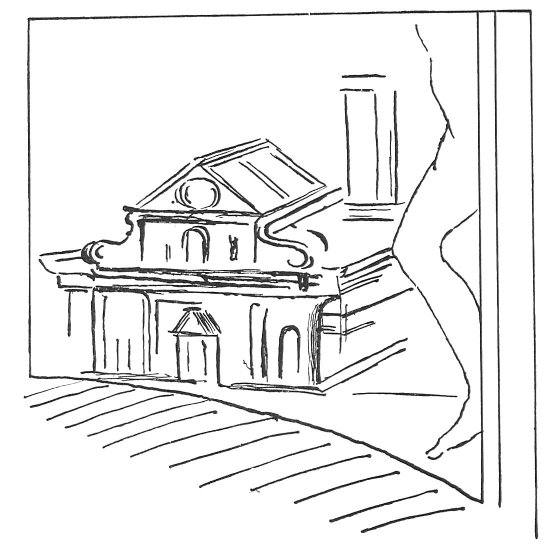

In the background of Leonardo's unfinished picture of St. Jerome (Vatican Gallery) a somewhat similar church front is indicated (see the accompanying sketch).


Click to enlarge

The view of the front of a temple, apparently a dome in the centre of four corinthian porticos bearing pediments (published by Amoretti Tav. II. B as being by Leonardo), is taken from a drawing, now at the Ambrosian Gallery. We cannot consider this to be by the hand of the master.


Footnotes

53:379 2: Already published in the Saggio Pl. IX.

53:380 3: See MALASPINA, il Duomo di Pavia. Documents.
