1012.

From the beginning of the canal to the mill.

From the beginning of the canal of Brivio to the mill of Travaglia is 2794 trabochi, that is 11176 braccia, which is more than 3 miles and two thirds; and here the canal is 57 braccia higher than the surface


Click to enlarge

p. 232

of the water of the Adda, giving a fall of two inches in every hundred trabochi; and at that spot we propose to take the opening of our canal.

 541


Footnotes

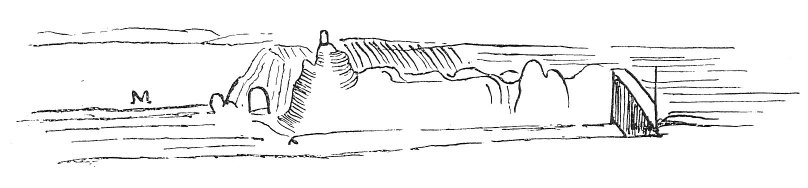

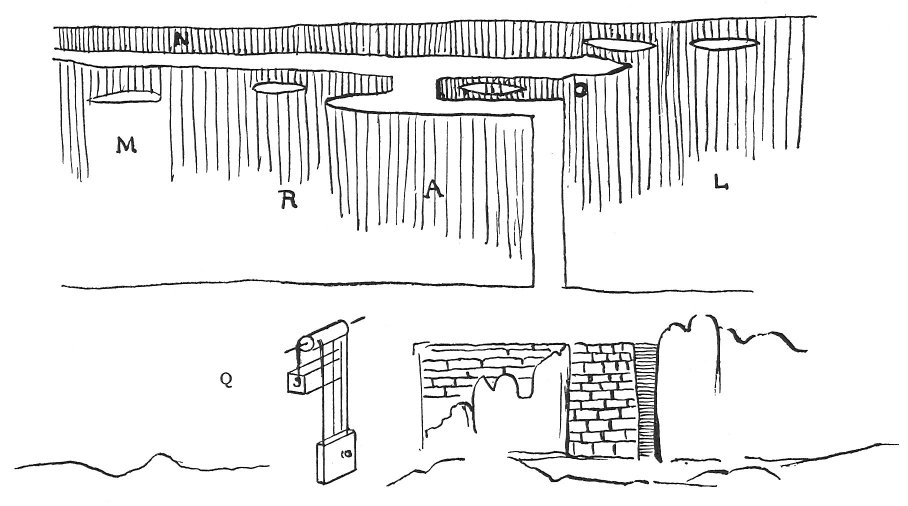

232:541 : The following are written on the sketches: At the place marked N: navilio da dacquiue (canal of running water); at M: molin del Travaglia (Mill of Travaglia); at R: rochetta ssanta maria (small rock of Santa Maria); at A: Adda; at L: Lagho di Lecho ringorgato alli 3 corni in Adda,--Concha perpetua (lake of Lecco overflowing at Tre Corni, in Adda,-- a permanent sluice). Near the second sketch, referring to the sluice near Q: qui la chatena ttalie d'u peso (here the chain is in one piece). At M in the lower sketch: mol del travaglia, nel cavare la concha il tereno ara chotrapero co cassa d'acqua. (Mill of Travaglia, in digging out the sluice the soil will have as a counterpoise a vessel of water).
