p. 60

E. Studies for the Central Tower, or Tiburio of Milan Cathedral.

Towards the end of the fifteenth century the Fabbricceria del Duomo had to settle on the choice of a model for the crowning and central part of this vast building. We learn from a notice published by G. L. Calvi  384 that among the artists who presented models in the year 1488 were: Bramante, Pietro da Gorgonzola, Luca Paperio (Fancelli), and Leonardo da Vinci.--

Several sketches by Leonardo refer to this important project:

Pl. XCIX, No. 2 (MS. S. K. III, No. 36a) a small plan of the whole edifice.--The projecting chapels in the middle of the transept are wanting here. The nave appears to be shortened and seems to be approached by an inner "vestibolo".--

Pl. C, No. 2 (Tr. 21). Plan of the octagon tower, giving the disposition of the buttresses; starting from the eight pillars adjoining the four principal piers and intended to support the eight angles of the Tiburio. These buttresses correspond exactly with those described by Bramante as existing in the model presented by Omodeo.  385

Pl. C, 3 (MS. Tr. 16). Two plans showing different arrangements of the buttresses, which seem to be formed partly by the intersection of a system of pointed arches such as that seen in

Pl. C, No. 5 (MS. B, 27a) destined to give a broader base to the drum. The text underneath is given under No. 788.

MS. B, 3--three slight sketches of plans in connexion with the preceding ones.

p. 61

Pl. XCIX, No.1 (MS. Tr. 15) contains several small sketches of sections and exterior views of the Dome; some of them show buttress-walls shaped as inverted arches. Respecting these Leonardo notes:

758.

The inverted arch is better for giving a shoulder than the ordinary one, because the former finds below it a wall resisting its weakness, whilst the latter finds in its weak part nothing but air.

Three slight sketches of sections on the same leaf--above those reproduced here--are more closely connected with the large drawing in the centre of Pl. C, No. 4 (M.S, Tr. 41) which shows a section of a very elevated dome, with double vaults, connected by ribs and buttresses ingeniously disposed, so as to bring the weight of the lantern to bear on the base of the dome.

A sketch underneath it shows a round pillar on which is indicated which part of its summit is to bear the weight: "il pilastro sara charicho in . a . b." (The column will bear the weight at a b.) Another note is above on the right side: Larcho regiera tanto sotto asse chome di sopra se (The arch supports as much below it [i. e. a hanging weight] as above it).

Pl. C, No. 1 (C. A. 303a). Larger sketch of half section of the Dome, with a very complicated system of arches, and a double vault. Each stone is shaped so as to be knit or dovetailed to its neighbours. Thus the inside of the Dome cannot be seen from below.

MS. C. A. 303b. A repetition of the preceding sketch with very slight modifications.


Click to enlarge

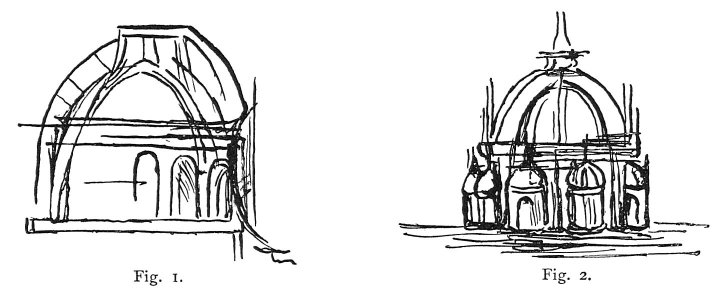

MS. Tr. 9 (see Fig. 1 and 2). Section of the Dome with reverted buttresses between the windows, above which iron anchors or chains seem to be intended. Below is the sketch of the outside.

p. 62


Click to enlarge

Pl. XCIX, No. 3 (C. A., 262a) four sketches of the exterior of the Dome.

C. A. 12. Section, showing the points of rupture of a gothic vault, in evident connection with the sketches described above.

It deserves to be noticed how easily and apparently without effort, Leonardo manages to combine gothic details and structure with the more modern shape of the Dome.

The following notes are on the same leaf, oni cosa poderosa, and oni cosa poderosa desidera de(scendere); farther below, several multiplications most likely intended to calculate the weight of some parts of the Dome, thus 16 x 47 = 720; 720 x 800 = 176000, next to which is written: peso del pilastro di 9 teste (weight of the pillar 9 diameters high).

Below: 176000 x 8 = 1408000; and below:

Semjlio e se ce 80 (?) il peso del tiburio (six millions six hundred (?) 80 the weight of the Dome).

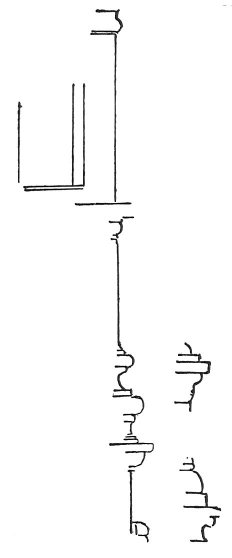

Bossi hazarded the theory that Leonardo might have been the architect who built the church of Sta. Maria delle Grazie, but there is no evidence to support this, either in documents or in the materials supplied by Leonardos manuscripts and drawings. The sketch given at the side shows the arrangement of the second and third socle on the apses of the choir of that church; and it is remarkable that those sketches, in MS. S. K. M. II2, 2a and Ib, occur with the passage given in Volume I as No. 665 and 666 referring to the composition of the Last Supper in the Refectory of that church.


Footnotes

60:384 : G. L. CALVI, Notizie sulla vita e sulle opere dei principali architetti scultori e pittori che fiorirono in Milano, Part III, 20. See also: H. DE GEYMULLER, Les projets primitifs etc. I, 37 and 116-119.--The Fabbricceria of the Duomo has lately begun the publication of the archives, which may possibly tell us more about the part taken by Leonardo, than has hitherto been known.

60:385 : Bramante's opinion was first published by G. MONGERl, Arch. stor. Lomb. V, fasc. 3 and afterwards by me in the publication mentioned in the preceding note.
